Merge pull request #1319 from Johannes-Larsson/master

Add planck/johannes layout

keyboards/planck/keymaps/johannes/Makefile

@@ -0,0 +1,25 @@
+
+
+# Build Options
+#   change to "no" to disable the options, or define them in the Makefile in
+#   the appropriate keymap folder that will get included automatically
+#
+BOOTMAGIC_ENABLE = no       # Virtual DIP switch configuration(+1000)
+MOUSEKEY_ENABLE = yes       # Mouse keys(+4700)
+EXTRAKEY_ENABLE = yes       # Audio control and System control(+450)
+CONSOLE_ENABLE = no         # Console for debug(+400)
+COMMAND_ENABLE = no        # Commands for debug and configuration
+NKRO_ENABLE = yes            # Nkey Rollover - if this doesn't work, see here: https://github.com/tmk/tmk_keyboard/wiki/FAQ#nkro-doesnt-work
+BACKLIGHT_ENABLE = no      # Enable keyboard backlight functionality
+MIDI_ENABLE = no            # MIDI controls
+AUDIO_ENABLE = no           # Audio output on port C6
+UNICODE_ENABLE = no         # Unicode
+BLUETOOTH_ENABLE = no       # Enable Bluetooth with the Adafruit EZ-Key HID
+RGBLIGHT_ENABLE = no        # Enable WS2812 RGB underlight.  Do not enable this with audio at the same time.
+
+# Do not enable SLEEP_LED_ENABLE. it uses the same timer as BACKLIGHT_ENABLE
+SLEEP_LED_ENABLE = no    # Breathing sleep LED during USB suspend
+
+ifndef QUANTUM_DIR
+	include ../../../../Makefile
+endif

keyboards/planck/keymaps/johannes/keymap.c

@@ -0,0 +1,99 @@
+#include "planck.h"
+
+// Each layer gets a name for readability, which is then used in the keymap matrix below.
+// The underscores don't mean anything - you can have a layer called STUFF or any other name.
+// Layer names don't all need to be of the same length, obviously, and you can also skip them
+// entirely and just use numbers.
+
+// Fillers to make layering more clear
+#define _______ KC_TRNS
+#define XXXXXXX KC_NO
+#define QWERTY 0
+#define LOWER 1
+#define RAISE 2
+#define FUNCTION 3
+
+const uint16_t PROGMEM keymaps[][MATRIX_ROWS][MATRIX_COLS] = {
+
+/* Qwerty
+ * ,-----------------------------------------------------------------------------------.
+ * | Tab  |   Q  |   W  |   E  |   R  |   T  |   Y  |   U  |   I  |   O  |   P  | Bksp |
+ * |------+------+------+------+------+-------------+------+------+------+------+------|
+ * | Esc  |   A  |   S  |   D  |   F  |   G  |   H  |   J  |   K  |   L  |   ;  |  '   |
+ * |------+------+------+------+------+------|------+------+------+------+------+------|
+ * | Ctrl |   Z  |   X  |   C  |   V  |   B  |   N  |   M  |   ,  |   .  |   /  |Enter |
+ * |------+------+------+------+------+------+------+------+------+------+------+------|
+ * |      | alt  |play/p| super|shift | Space|Raise | lower|  alt | altgr|      |fn    |
+ * `-----------------------------------------------------------------------------------'
+ */
+[QWERTY] = {
+  {KC_TAB,  KC_Q,    KC_W,    KC_E,    KC_R,    KC_T,    KC_Y,    KC_U,    KC_I,    KC_O,    KC_P,    KC_BSPC},
+  {KC_ESC,  KC_A,    KC_S,    KC_D,    KC_F,    KC_G,    KC_H,    KC_J,    KC_K,    KC_L,    KC_SCLN, KC_QUOT},
+  {KC_LCTRL, KC_Z,    KC_X,    KC_C,    KC_V,    KC_B,    KC_N,    KC_M,    KC_COMM, KC_DOT,  KC_SLSH, KC_ENT },
+  {_______, KC_LALT, LT(FUNCTION, KC_MPLY), KC_LGUI, KC_LSHIFT,    KC_SPC,  MO(RAISE),   MO(LOWER),   KC_LALT, KC_RALT, XXXXXXX,   MO(FUNCTION)}
+},
+
+/* Lower
+ * ,-----------------------------------------------------------------------------------.
+ * |   ~  |   !  |   @  |   #  |   $  |   %  |   ^  |   &  |   *  |   (  |   )  |      |
+ * |------+------+------+------+------+-------------+------+------+------+------+------|
+ * |      |      |  {   |  }   |  +   |      |      | Å    |  Ä   |  Ö   |   _  |      |
+ * |------+------+------+------+------+------|------+------+------+------+------+------|
+ * |      |      |      |      |      |      |      |      |      |      |   \  |      |
+ * |------+------+------+------+------+------+------+------+------+------+------+------|
+ * |      |      |      |      |      |             |      |      |      |      |      |
+ * `-----------------------------------------------------------------------------------'
+ */
+[LOWER] = {
+  {KC_TILD, KC_EXLM, KC_AT,   KC_HASH, KC_DLR,  KC_PERC, KC_CIRC, KC_AMPR, KC_ASTR, KC_LPRN, KC_RPRN, KC_BSPC},
+  {_______, _______,   KC_LCBR,   KC_RCBR,   KC_PLUS,   _______,   _______,   RALT(KC_W), RALT(KC_Q), RALT(KC_P), KC_UNDS, _______},
+  {_______, _______,   _______,   _______,   _______,  _______,  _______,_______, _______,_______, KC_BSLS, _______},
+  {_______,   _______, _______, _______, _______, _______, _______, _______, _______, _______, _______, _______}
+},
+
+/* Raise
+ * ,-----------------------------------------------------------------------------------.
+ * |   `  |   1  |   2  |   3  |   4  |   5  |   6  |   7  |   8  |   9  |   0  |  del |
+ * |------+------+------+------+------+-------------+------+------+------+------+------|
+ * |      |      |  [   |  ]   |  =   |      |  left|  down|  up  | right|   -  |      |
+ * |------+------+------+------+------+------|------+------+------+------+------+------|
+ * |      |      |      |      |      |      |      |      |      |      |   |  |      |
+ * |------+------+------+------+------+------+------+------+------+------+------+------|
+ * |      |      |      |      |      |             |      |      |      |      |      |
+ * `-----------------------------------------------------------------------------------'
+ */
+[RAISE] = {
+  {KC_GRV,  KC_1,    KC_2,    KC_3,    KC_4,    KC_5,    KC_6,    KC_7,    KC_8,    KC_9,    KC_0,    KC_DEL},
+  {_______,  _______,   KC_LBRC,   KC_RBRC,   KC_EQL,   _______,   KC_LEFT,   KC_DOWN, KC_UP,  KC_RIGHT, KC_MINS, _______},
+  {_______, _______,   _______,   _______,   _______,  _______,  _______,  _______, _______, _______, KC_PIPE, _______},
+  {_______,   _______, _______, _______, _______, _______, _______, _______, _______, _______, _______, _______}
+},
+
+/* Fn
+ * ,-----------------------------------------------------------------------------------.
+ * |  F1  |  F2  |  F3  |  F4  |  F5  |  F6  |  F7  |  F8  |  F9  | F10  |  F11 |  F12 '
+ * |------+------+------+------+------+-------------+------+------+------+------+------|
+ * |      |      |      |      |      |      | prev | vol.d| vo.up| next |      |      |
+ * |------+------+------+------+------+------|------+------+------+------+------+------|
+ * |      |      |      |      |      |      | mute |      |      |      |      |      |
+ * |------+------+------+------+------+------+------+------+------+------+------+------|
+ * |      |      |      |      | CAPS |      |      |      |      |      |      |      |
+ * `-----------------------------------------------------------------------------------'
+ */
+[FUNCTION] = {
+  {KC_F1,  KC_F2,    KC_F3,    KC_F4,    KC_F5,    KC_F6,    KC_F7,    KC_F8,    KC_F9,    KC_F10,    KC_F11,    KC_F12},
+  {_______, _______,   _______,   _______,   _______,  _______,  KC_MEDIA_PREV_TRACK,  KC_AUDIO_VOL_DOWN, KC_AUDIO_VOL_UP, KC_MEDIA_NEXT_TRACK, _______, _______},
+  {_______,   _______, _______, _______, _______, _______, _______, KC_AUDIO_MUTE, _______, _______, _______, _______},
+  {_______,  _______,   _______,   _______,   KC_CAPS,   _______,   _______,   _______, _______,  _______, _______, _______}
+},
+
+};
+
+const uint16_t PROGMEM fn_actions[] = {
+
+};
+
+const macro_t *action_get_macro(keyrecord_t *record, uint8_t id, uint8_t opt)
+{
+  return MACRO_NONE;
+};

keyboards/planck/keymaps/johannes/readme.md

@@ -0,0 +1,6 @@
+# Planck layout for Swedish programmer
+I.e. easy access to special keys and åäö.
+

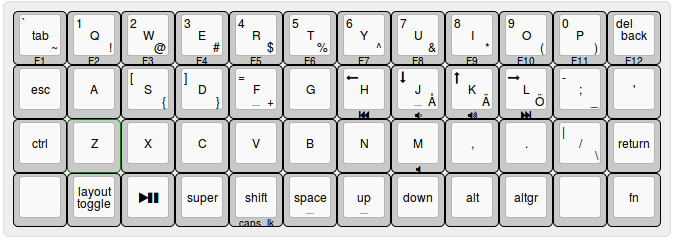

+![layout](planck-layout.png)
+
+[KBLE link](http://www.keyboard-layout-editor.com/#/gists/dc01cc2225899308a05ba3ef0031548b)
